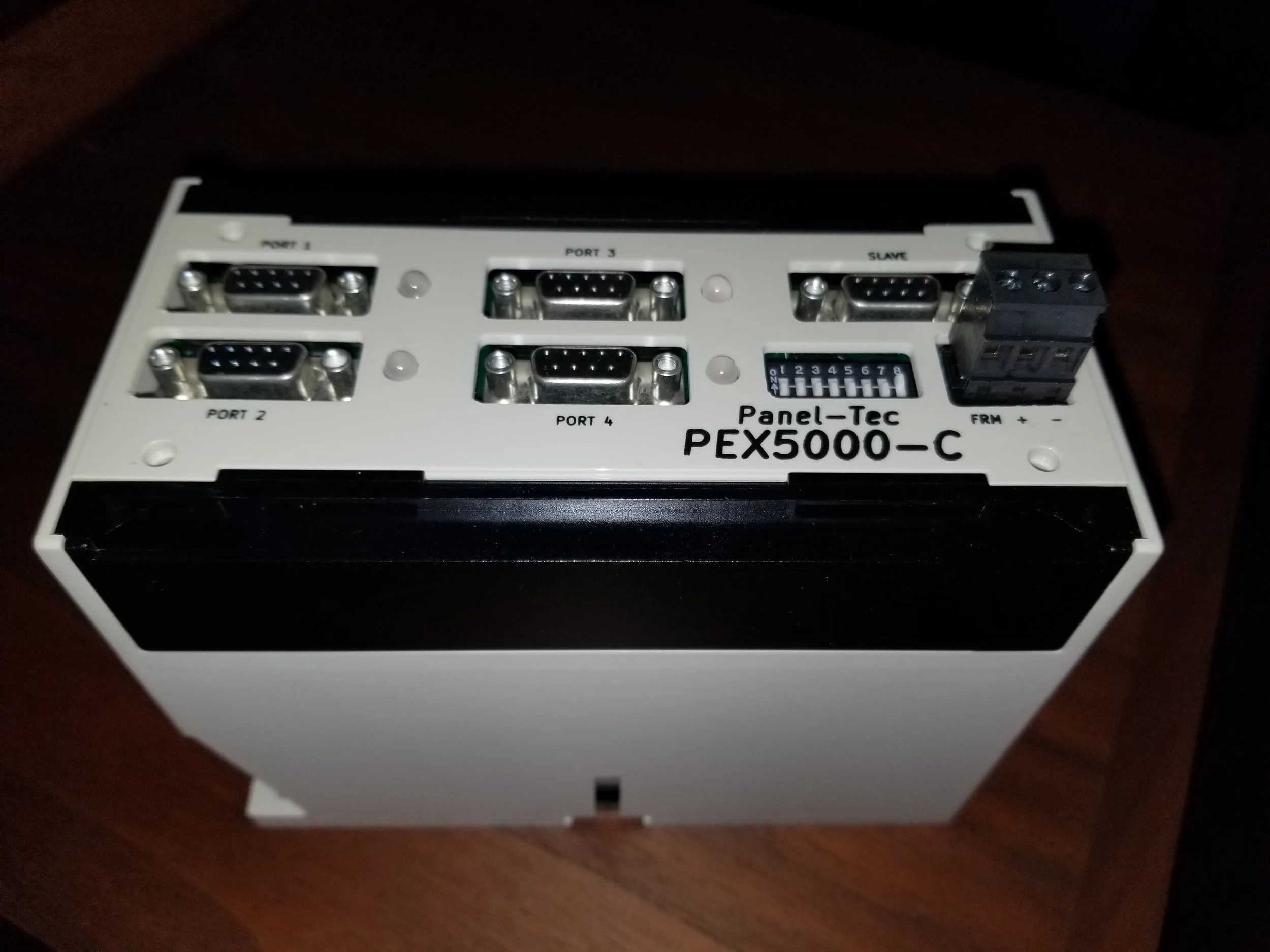

Product Features
- 4 Master/Slave Ports (DB9) support RS-232 and RS-485
- Dedicated Slave Port (DB9) supports RS-232 only
- Status indicators for each port (transmit/receive)
- Multiple master or slave configuration
- Automatically converts unlike baud rates and communication parameters between ports
- Automatically controls traffic flow between ports
- Program a PLC without disconnecting any display devices
- Simple menu-driven configuration from IBM PC compatible computer (configuration software included)
Part Numbers
| 1000-PEX5000-C-MOD | Supports Modbus ASCII & Modbus RTU protocols | |
| 1000-PEX5000-C-AB | Supports Allen Bradley DF1 protocol (PLC-5 & SLC5000 PLCs) | |
| 1000-PEX5100-C | Supports Modbus ASCII & Modbus RTU protocols Port 1 is Read-only |
Downloads
Technical Specifications
| Physical | |
| Dimensions (w/o brackets) | 10.25" w X 8.625" h x 2.25" d |
| Enclosure | Plastic housing |
| Mounting | DIN Rail or Panel mounting |
| Weight | 1 lb |
| Environmental | |
| Operational Temperature | 0° to +70° C (extended temp available on request) |
| Power Requirements | |
| Voltage | 7 to 28 VDC |
| Connectors | |
| Ports | DB-9 female (x5) |
| Power Supply | 3-position polarized DC with earth ground |
| Communicatios Options | |
| RS-232 | Single Mode +/- 12V |
| RS-422A | Differential Mode 5V (Polarity Non-Reversing) |
| Included Software | |
| PC-Based Configuration Editor | User-downloadable Configuration |
